A Pentester's Guide – Part 5 (Unmasking WAFs and Finding the Source)

2020-08-01 · NaviSec Team

WAF's

Before discussing WAF bypass techniques, it helps to establish some foundational knowledge. A Web Application Firewall typically acts as a proxy between the client (you the user) and the server itself. WAFs can analyze and scan all http requests to and from the server for payloads like SQLi, XSS, or XXE, blocking them in real-time.

Some WAFs operate in "monitor-only mode" to track blocked traffic without enforcement. For example, 0x00sec.org uses CloudFlare for web caching and automatic hands-free SSL.

Identifying a WAF

Initial detection methods include recognizing CloudFlare IP organization labels or captcha pages. Two primary identification techniques are useful here.

Technique 1 – IP Organization Lookup:

dig +short 0x00sec.org
curl -s https://ipinfo.io/<ip address> | jq -r '.org'

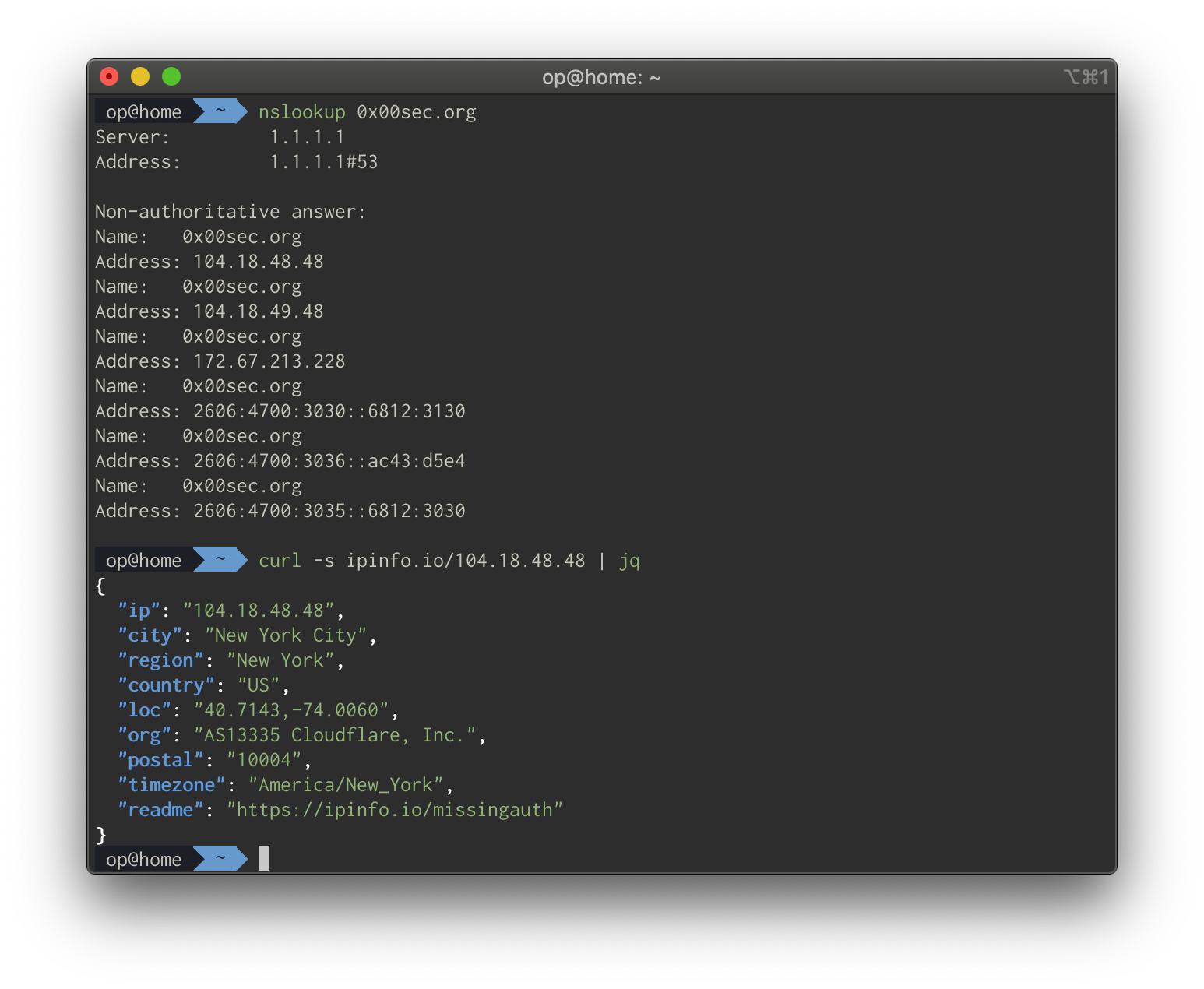

Terminal output resolving an IP's organization with dig and ipinfo.io

Technique 2 – AWS Load Balancer Detection:

AWS WAFs are harder to detect since they can look just like an IP of an EC2 instance, and silently block malicious requests. Detection involves identifying "AWSLB" and "AWSLBCORS" cookies through curl -vv commands.

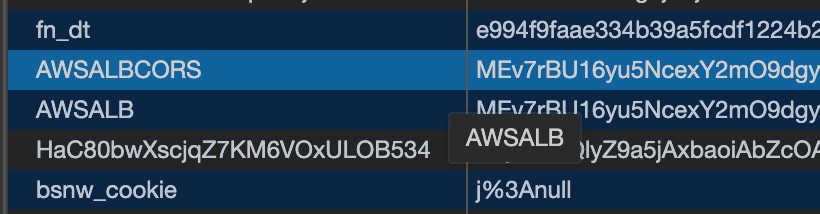

Curl output showing AWSLB and AWSLBCORS cookies revealing a load balancer

Identifying the source

The Theory

The fundamental vulnerability exploited is administrative misconfiguration: it is very common for IT administrators to leave web servers completely open on the internet without any whitelisting to the WAF upstream itself. This approach relies on obscurity — assuming attackers cannot discover the source IP. However, there's a deep toolbox of OSINT and scanning solutions to identify servers by indexing HTML content, titles, and other metadata.

This technique applies whether you're on a penetration testing engagement or in a threat hunting scenario where you're trying to unmask an onion host.

Censys & Shodan (OSINT)

Internet search engines like Censys and Shodan index HTML pages and title tags. It's worth using dnsdumpster.com to generate organizational infrastructure maps before searching. Save matching candidate IPs in a text file as you find them.

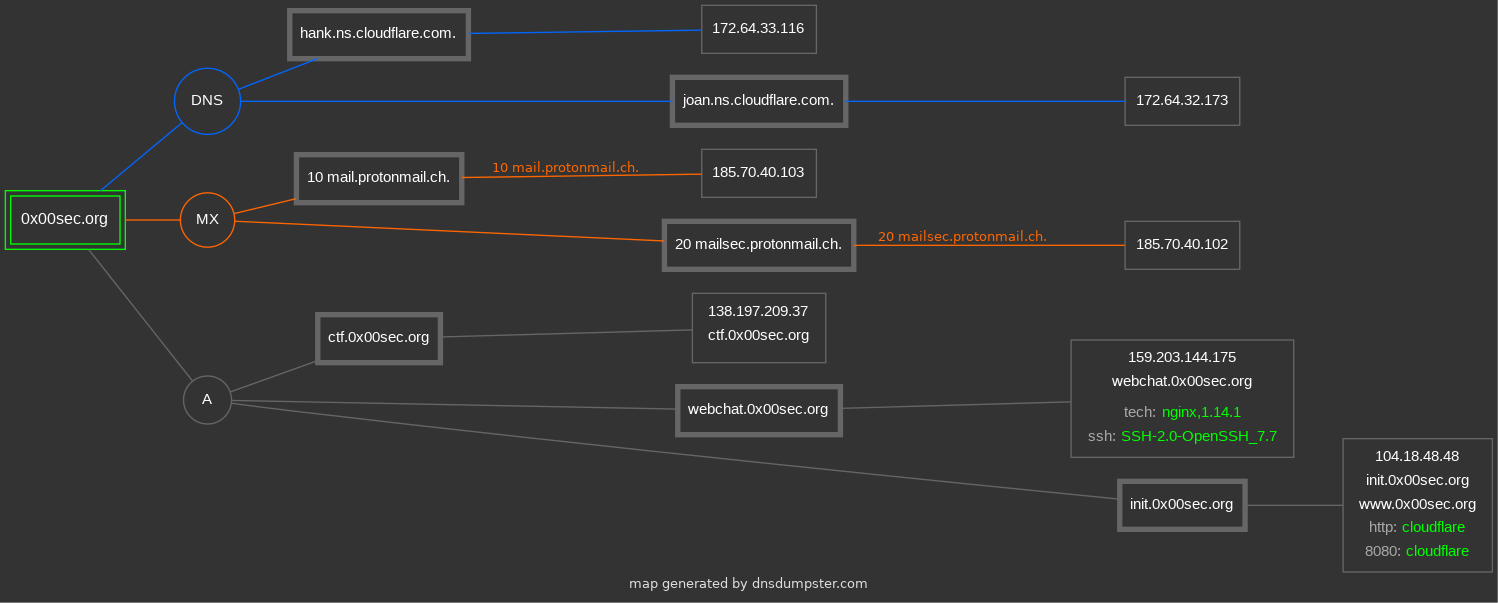

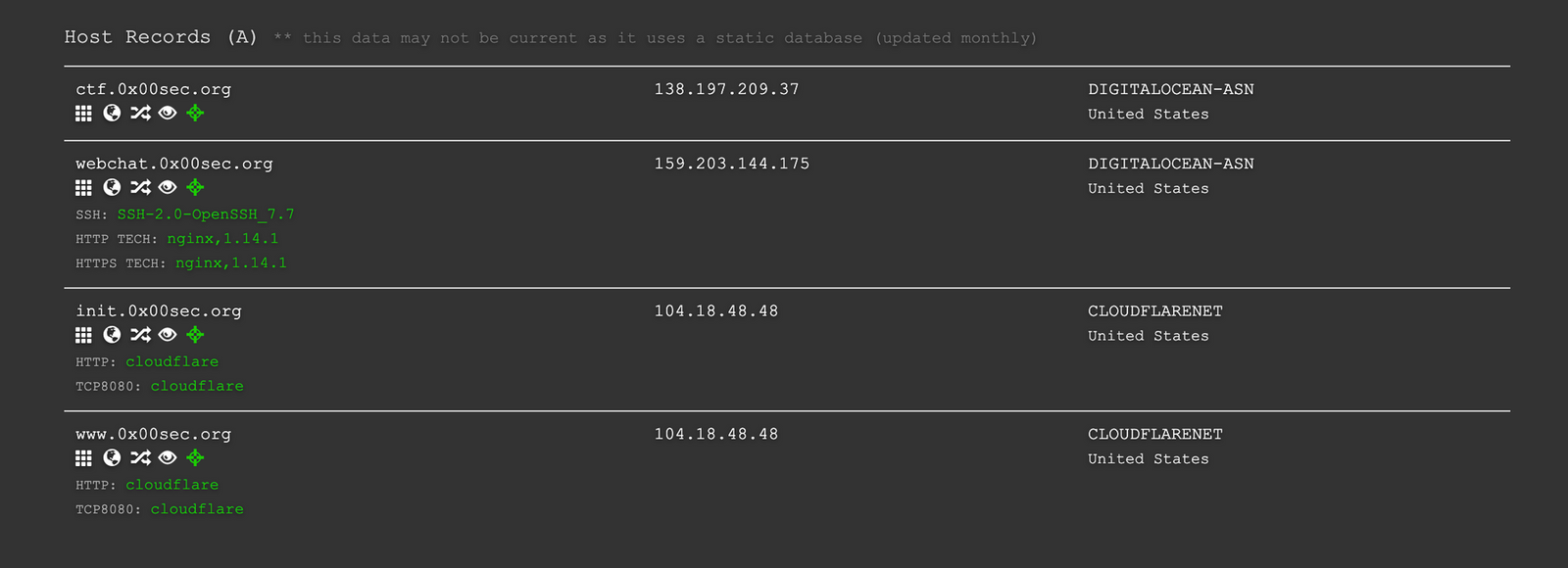

Dnsdumpster.com results mapping an organization's infrastructure

Dnsdumpster.com host results table

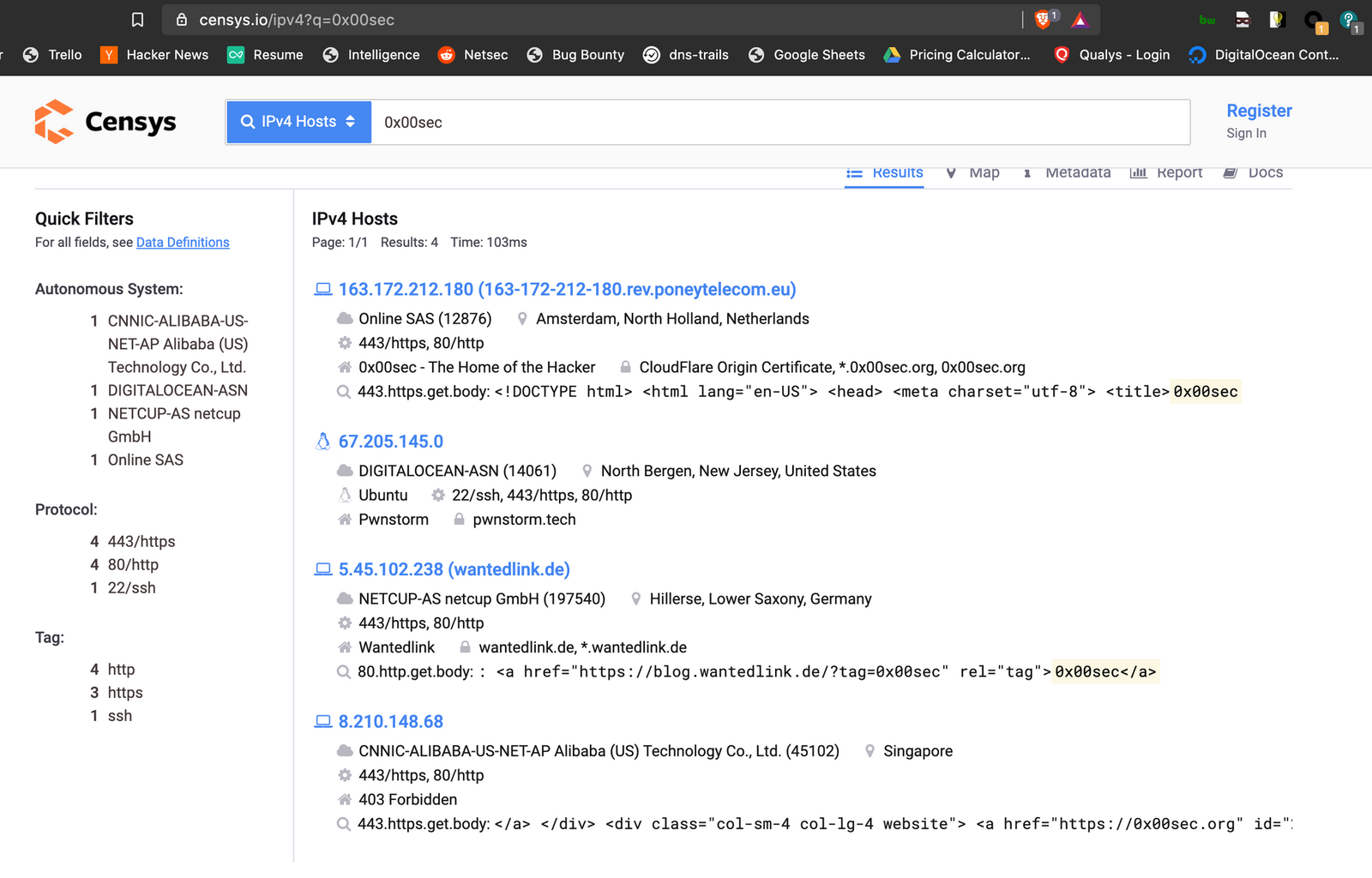

Censys search results showing candidate IP addresses

Security Trails (OSINT)

Historical DNS records reveal past IP associations. SecurityTrails DNS trails show A record history, often exposing situations where it was common for an administrator to switch to a WAF solution after some years without configuring whitelisting.

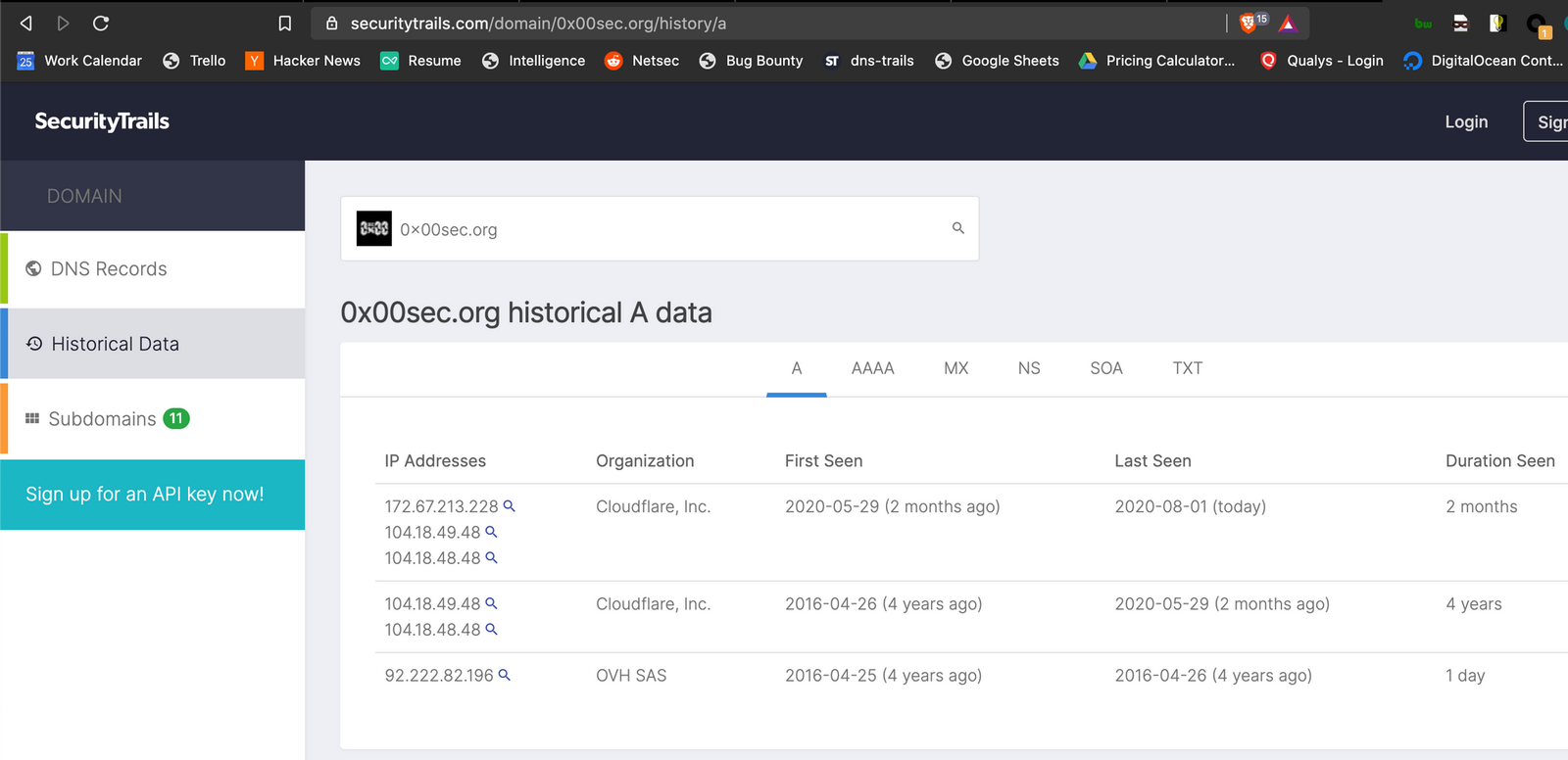

SecurityTrails DNS history showing historical A records

Extracting IPs from copied table data:

grep -E -o "([0-9]{1,3}[\.]){3}[0-9]{1,3}" tails.txt | sort -u | tee -a ips.txt

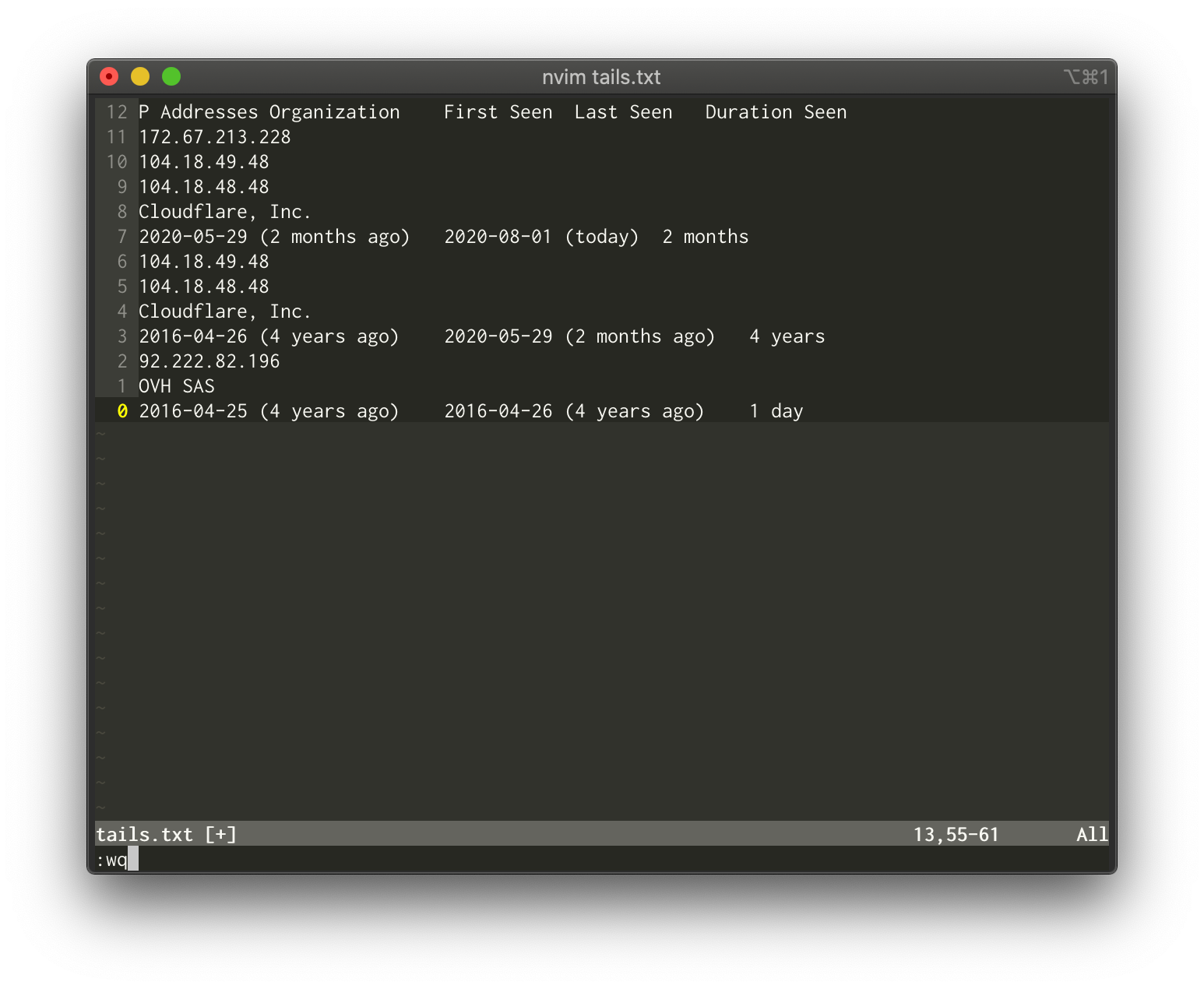

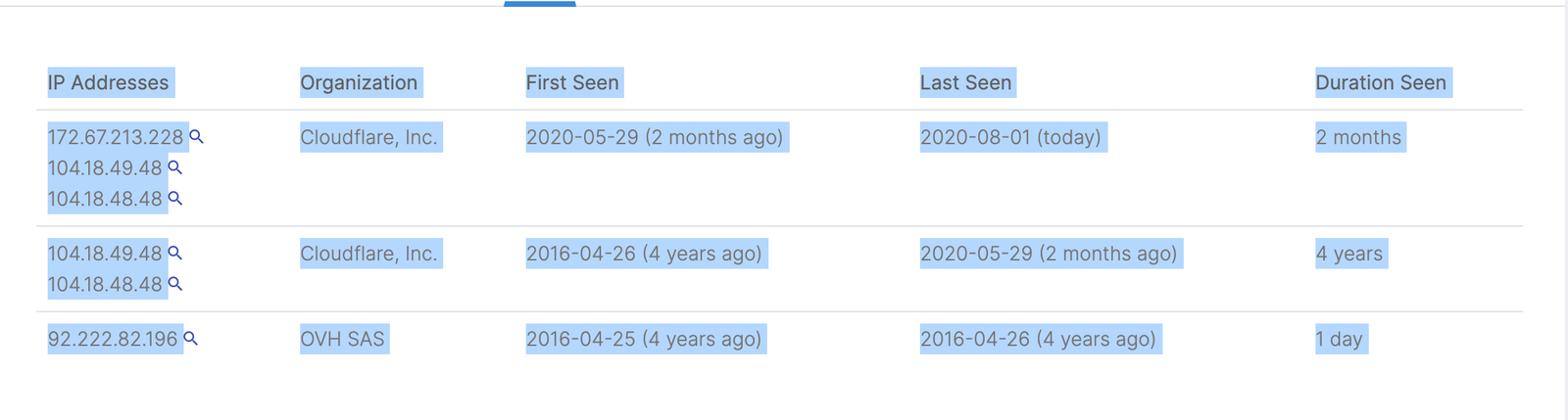

Terminal output extracting IP addresses from copied SecurityTrails table data

Terminal output of the grep and sort IP extraction command

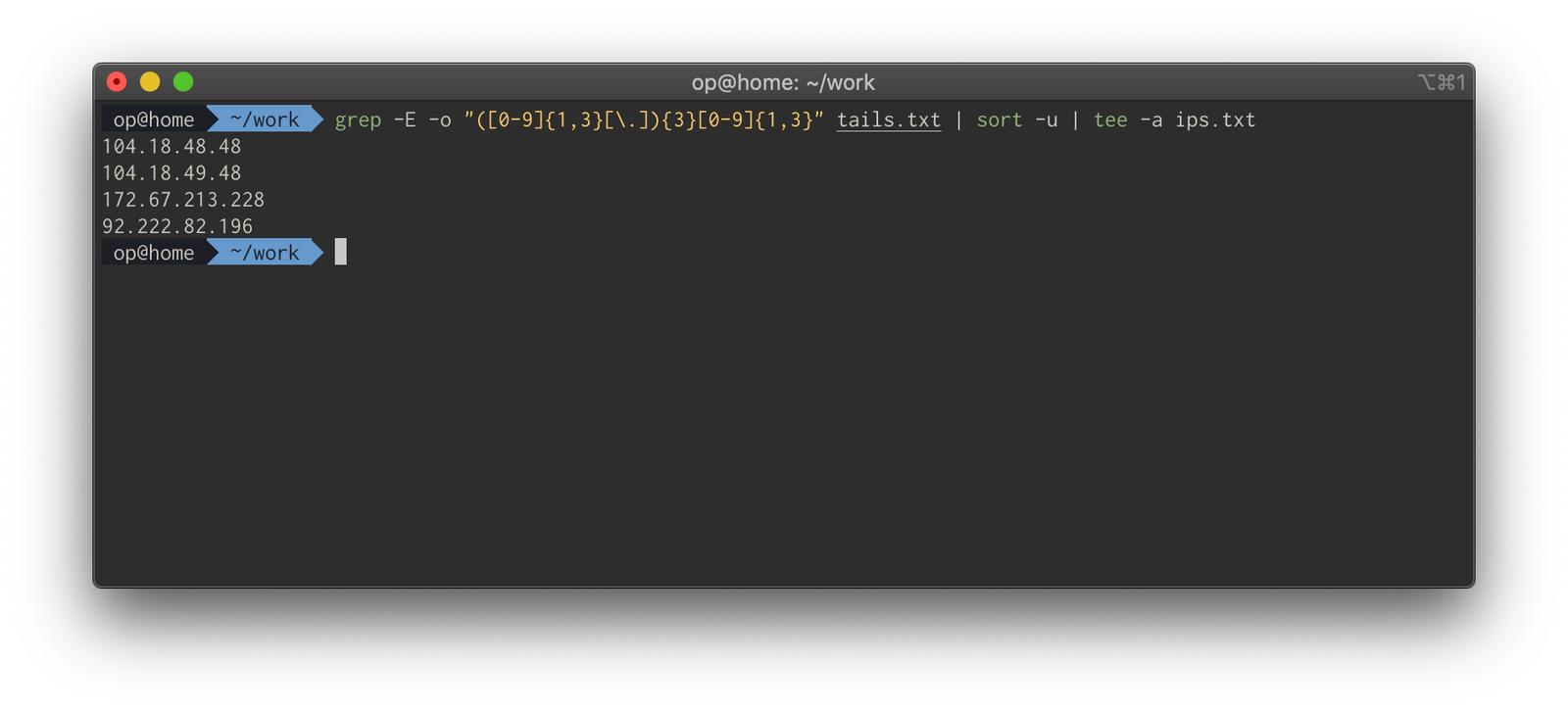

Deduplicated list of IP addresses written to ips.txt

DNS Enumeration

Subdomains like dev.example.com or staging.example.com often point to source hosts without WAF protection. The recommended enumeration command is:

subfinder -silent -d 0x00sec.org | dnsprobe -silent | awk  '{ print $2 }'  | sort -u | tee -a ips.txt

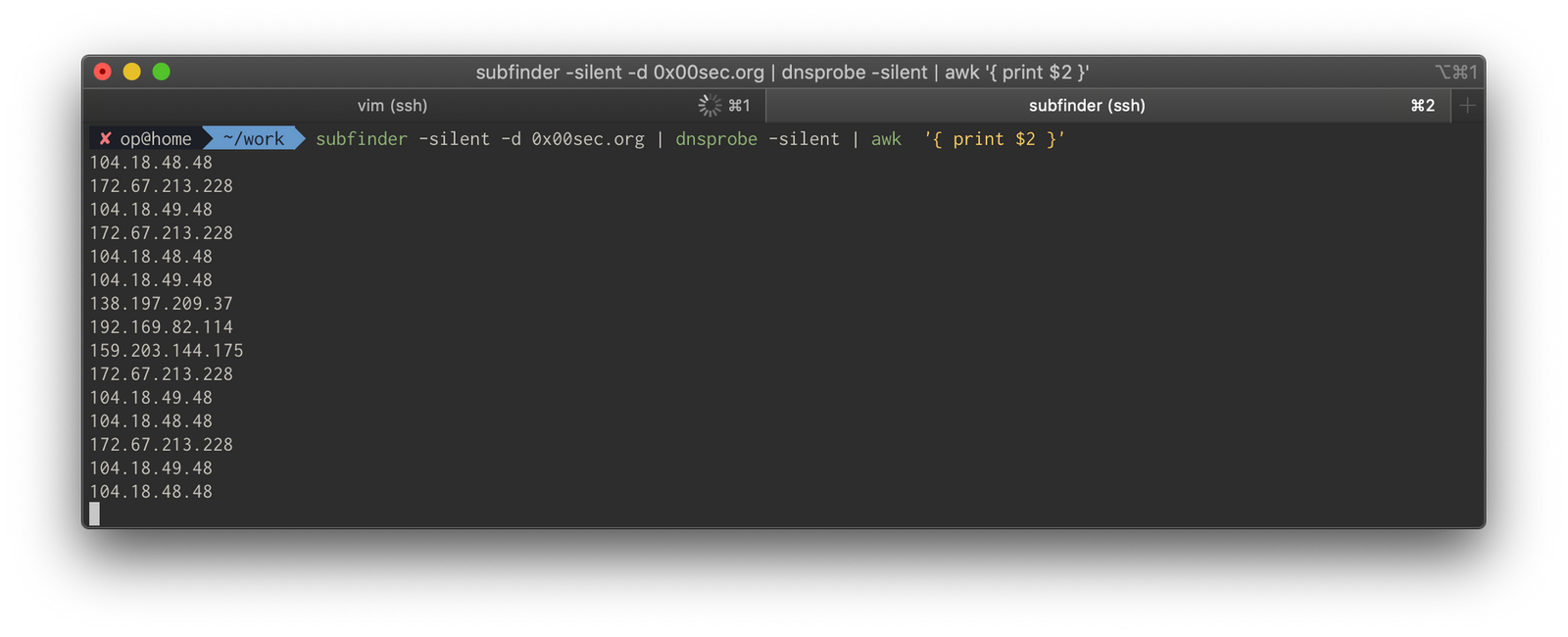

Terminal output of subfinder and dnsprobe subdomain enumeration

Checking IP's for hosts

After compiling IP candidates, manual filtering removes obvious public-facing sites and CloudFlare IPs, focusing on VPS providers like Microsoft Azure, Vultr, DigitalOcean, and GCP.

The primary enumeration command:

for ip in $(cat ips.txt); do org=$(curl -s https://ipinfo.io/$ip | jq -r '.org'); title=$(timeout 2 curl --tlsv1.1 -s -k -H "Host: 0x00sec.org" https://$ip/ | pup 'title text{}'); echo "IP: $ip Title: $title Org: $org"; done

Command breakdown:

for ip in $(cat ips.txt) — iterates through each file line
org=$(curl -s https://ipinfo.io/$ip | jq -r '.org') — retrieves organization data
title=$(timeout 2 curl -s -k -H "Host: 0x00sec.org" https://$ip/ | pup 'title text{}') — extracts HTML titles with a 2-second timeout

pup enables insanely quick html parsing tasks. Matching titles (for example "0x00sec – The Home Of The Hacker") confirms the source host has been found.

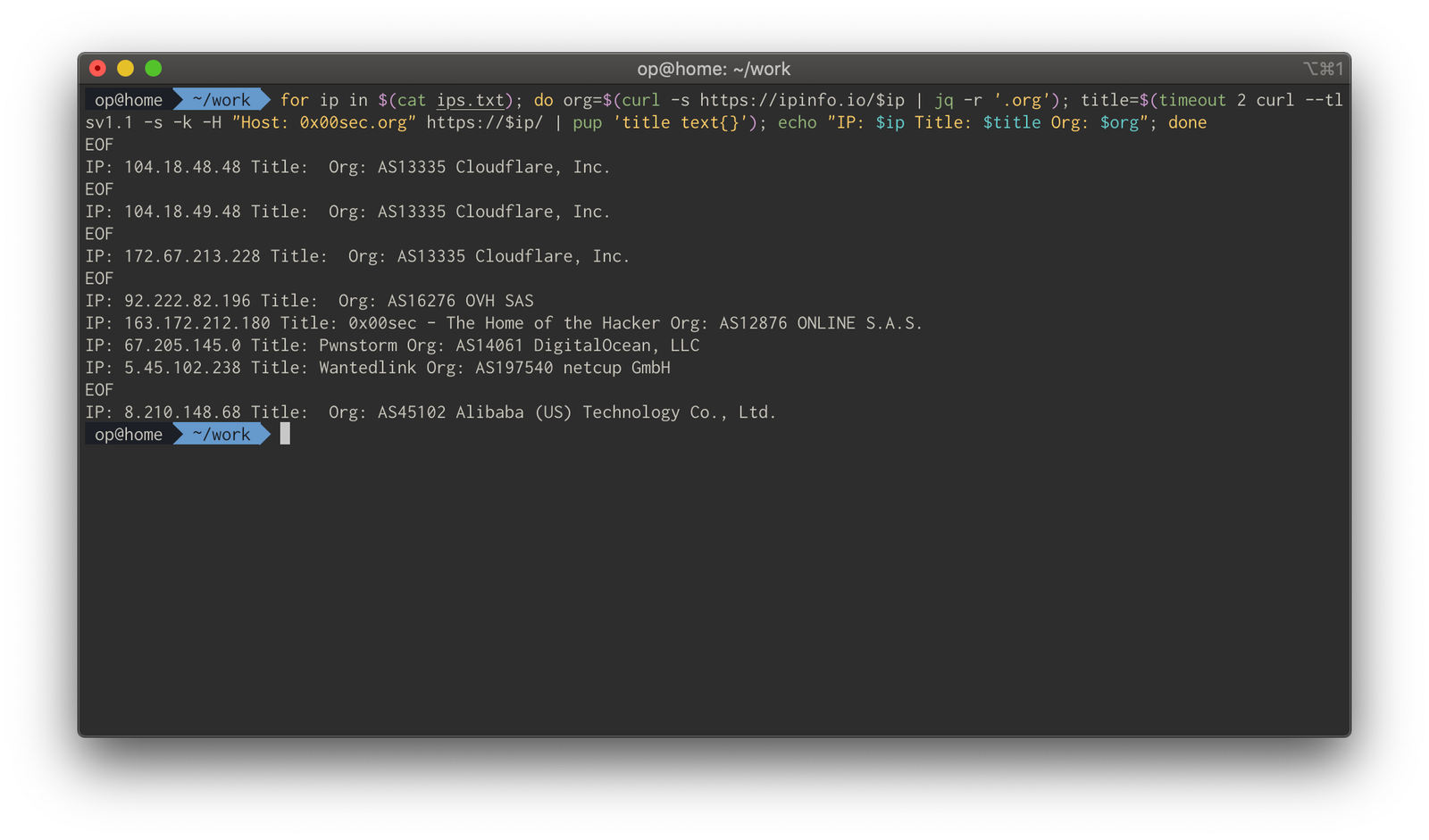

Terminal output listing each IP's title and organization, revealing the matching source host

Interacting with the host

Hosts file

Once the source IP is identified, interaction begins via the hosts file at /etc/hosts on Linux/Unix systems, requiring superuser privileges.

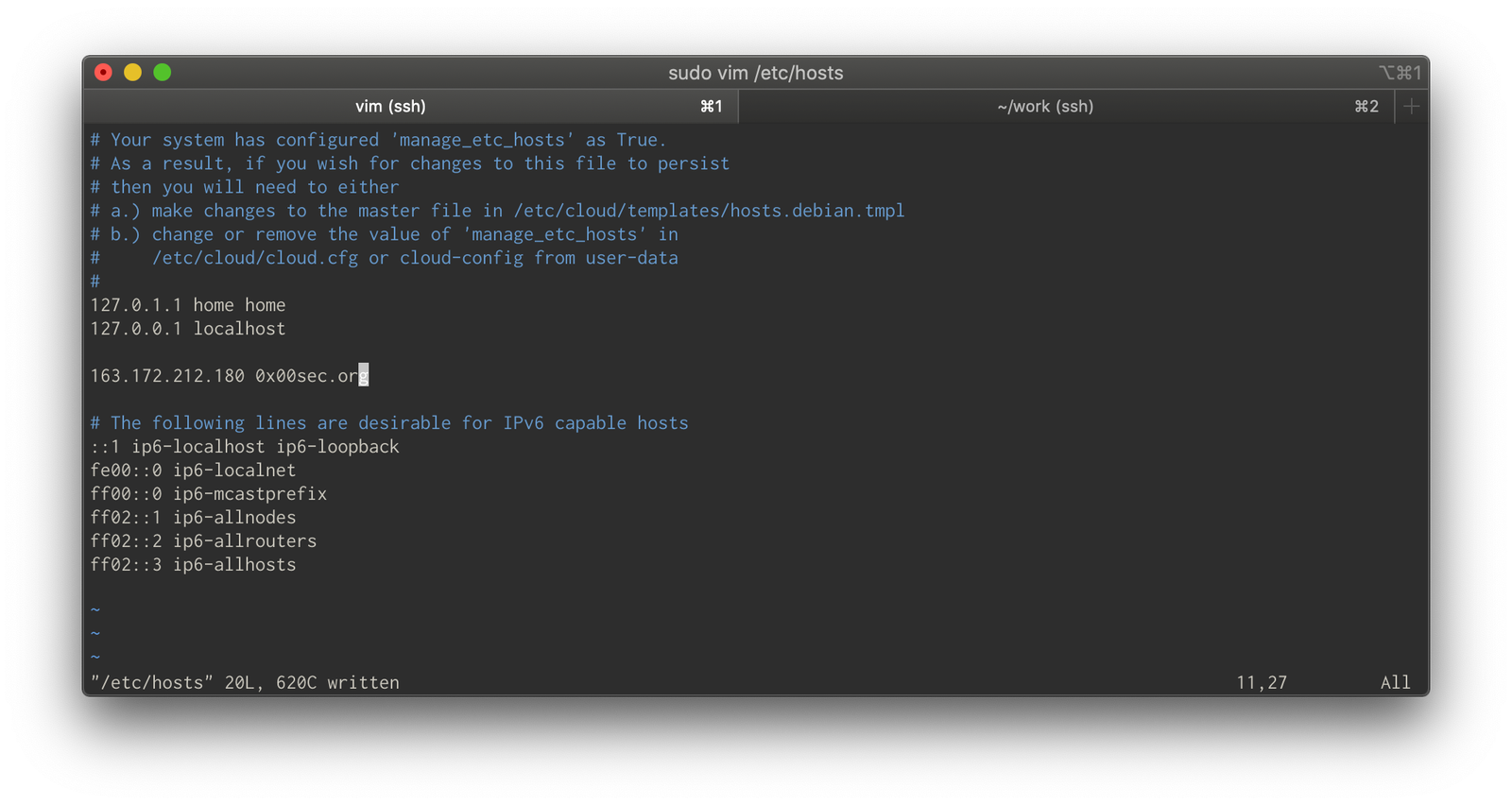

Editing /etc/hosts to point the domain at the discovered source IP

Setting the Host Header manually

Alternative methods using curl or BurpSuite set headers manually without global system changes:

curl -s -k -H "Host: 0x00sec.org" https://<ip address>/

The Host header signals to the webserver which domain you're requesting.

Mass SSL Scanning (Active)

SSL certificate scanning is another detection method. Certificate fields typically contain domain names; scanning port 443 across the internet and parsing certificates can identify all related hosts. This method has surfaced many undisclosed assets for clients — shadow IT is scary.

Get the server to make a request

A nuanced approach exploits remote URL include functionality, such as "include image from URL." Using Burp Collaborator allows attackers to observe server callback attempts. This works better for simple server setups (for example a single webapp) than complex multi-networked systems, which run into OOB DNS challenges.

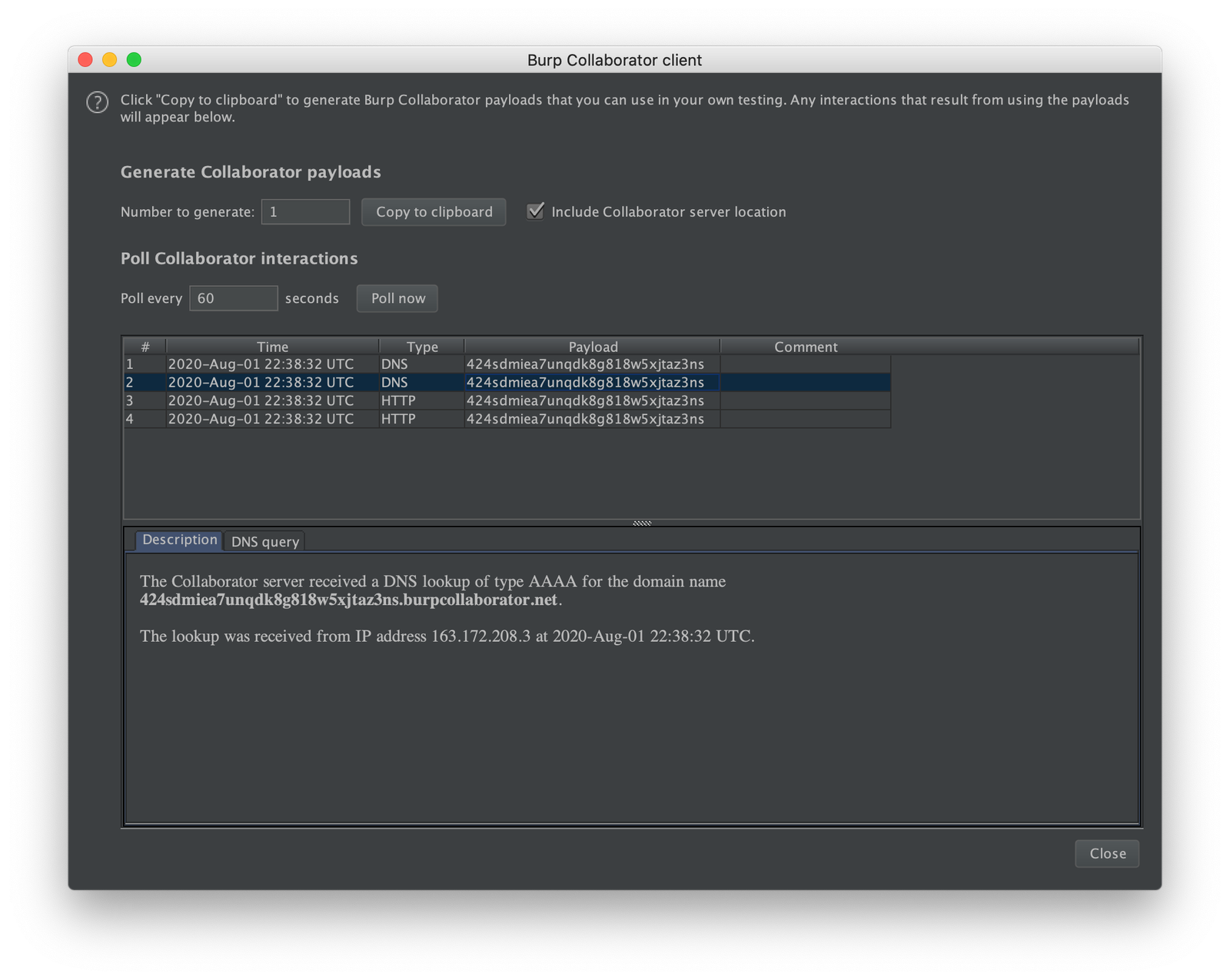

Burp Collaborator interactions captured from a remote URL include callback

Crobat Reverse Lookups

This technique uses Crobat for reverse DNS lookups across IP ranges. The workflow integrates ASN range data:

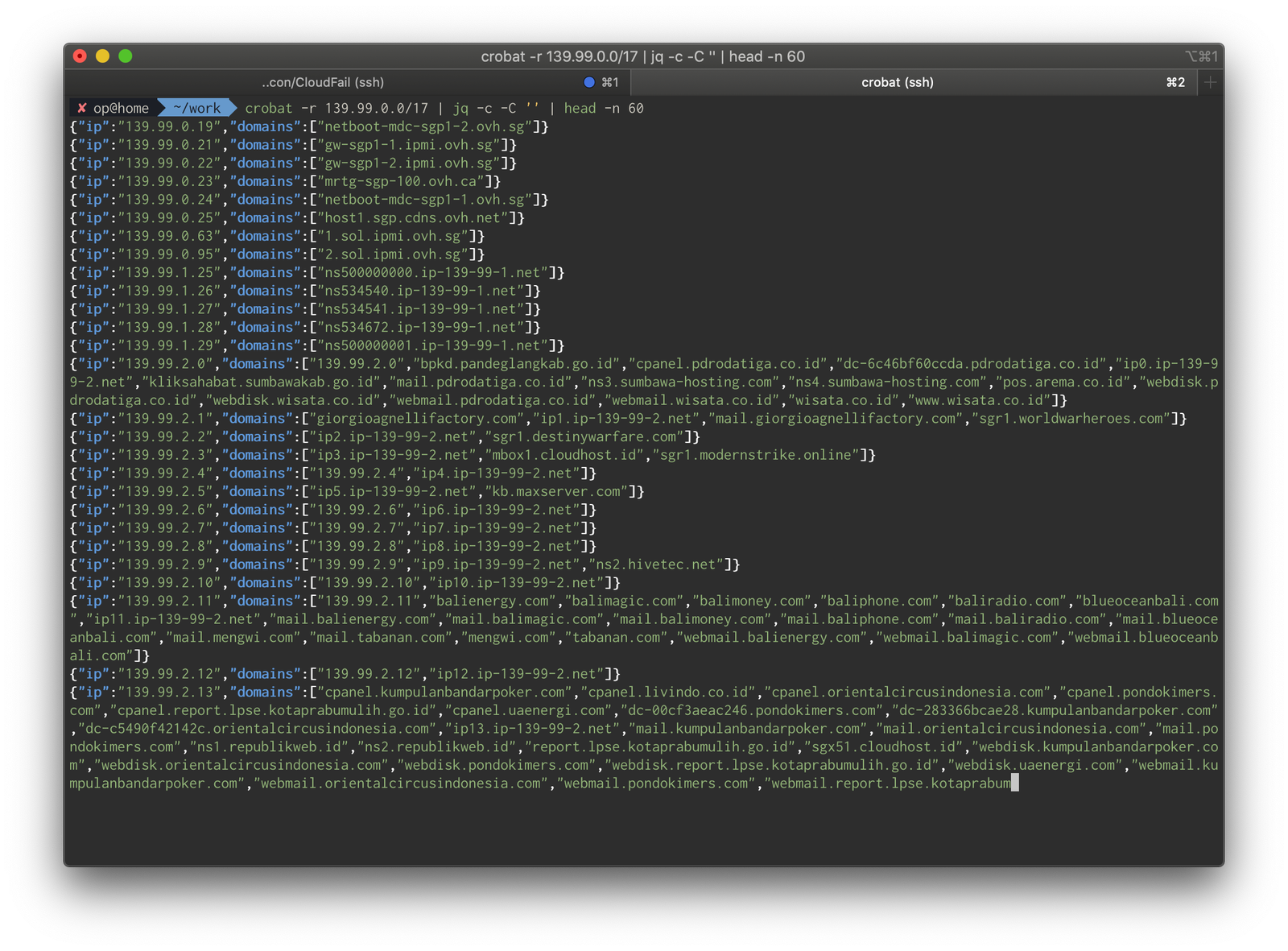

Crobat reverse DNS lookup example across an IP range

curl -s "https://ipinfo.io/AS16276/json?token=yourtokenifyouhaveit"  | jq  -r '.prefixes[].netblock' | tee -a ranges.txt

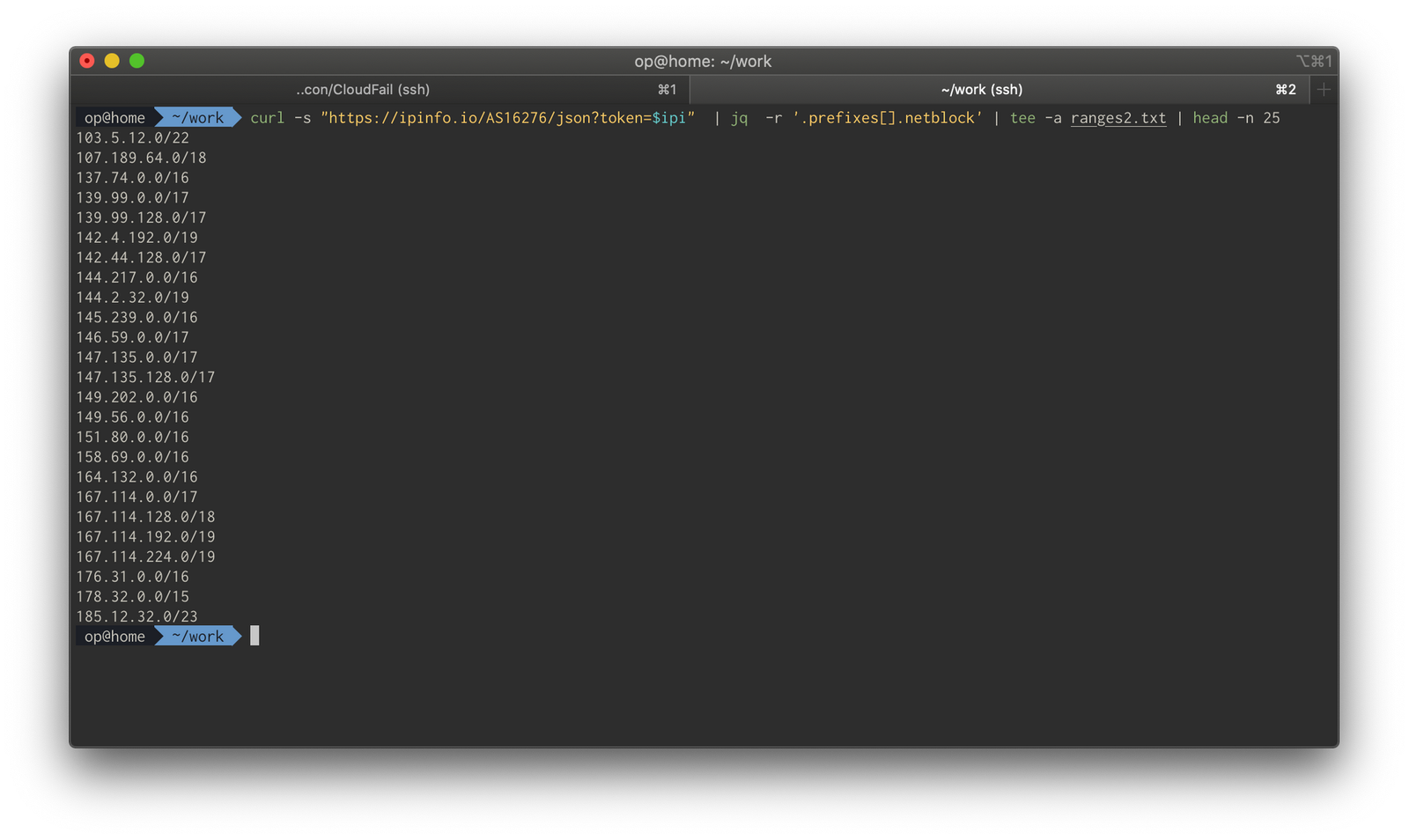

Terminal output pulling ASN netblock ranges from the ipinfo.io API

For non-premium users, manual extraction from the ipinfo.io ASN pages provides ranges.

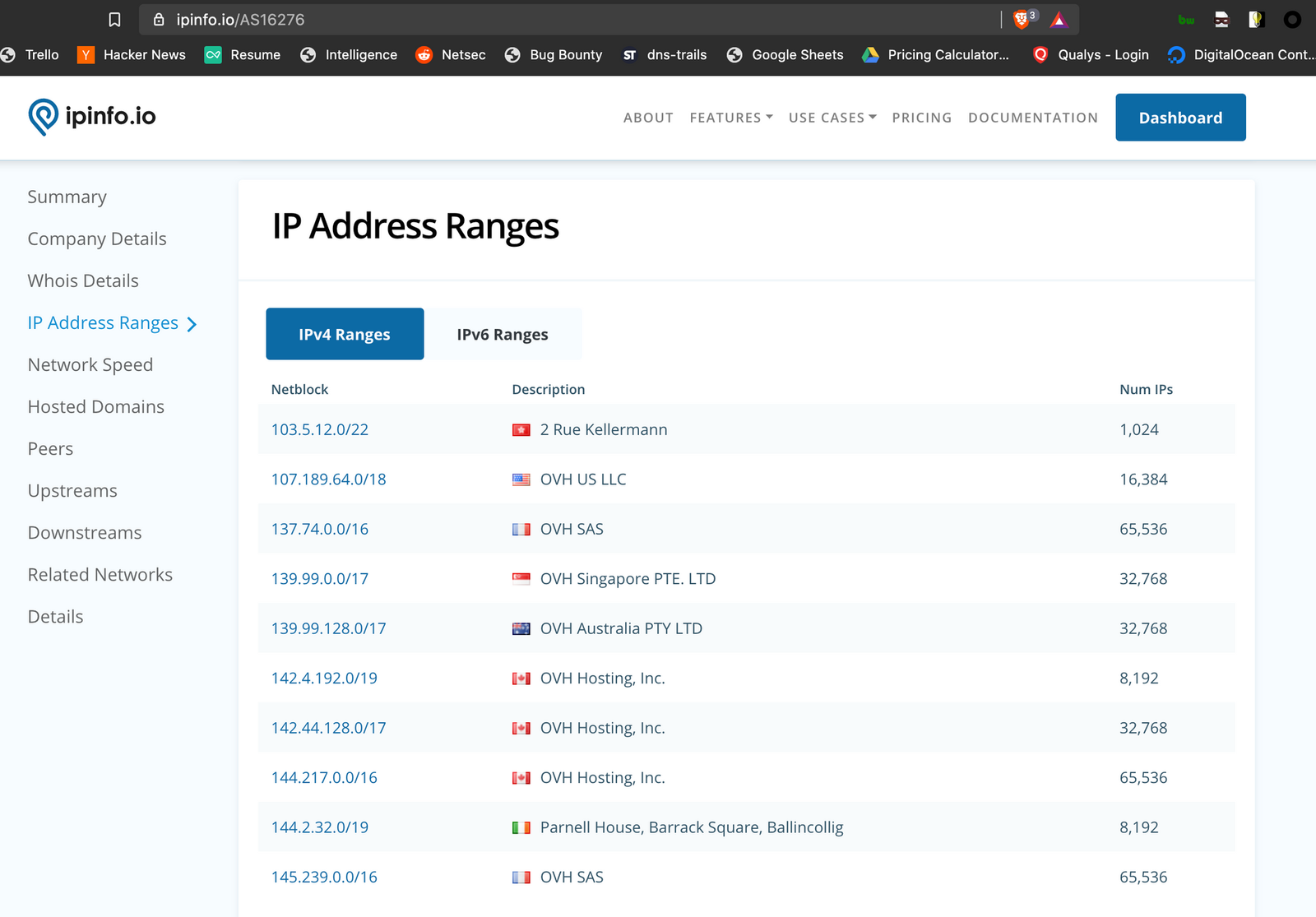

ipinfo.io ASN page showing the netblock ranges for AS16276

Range extraction:

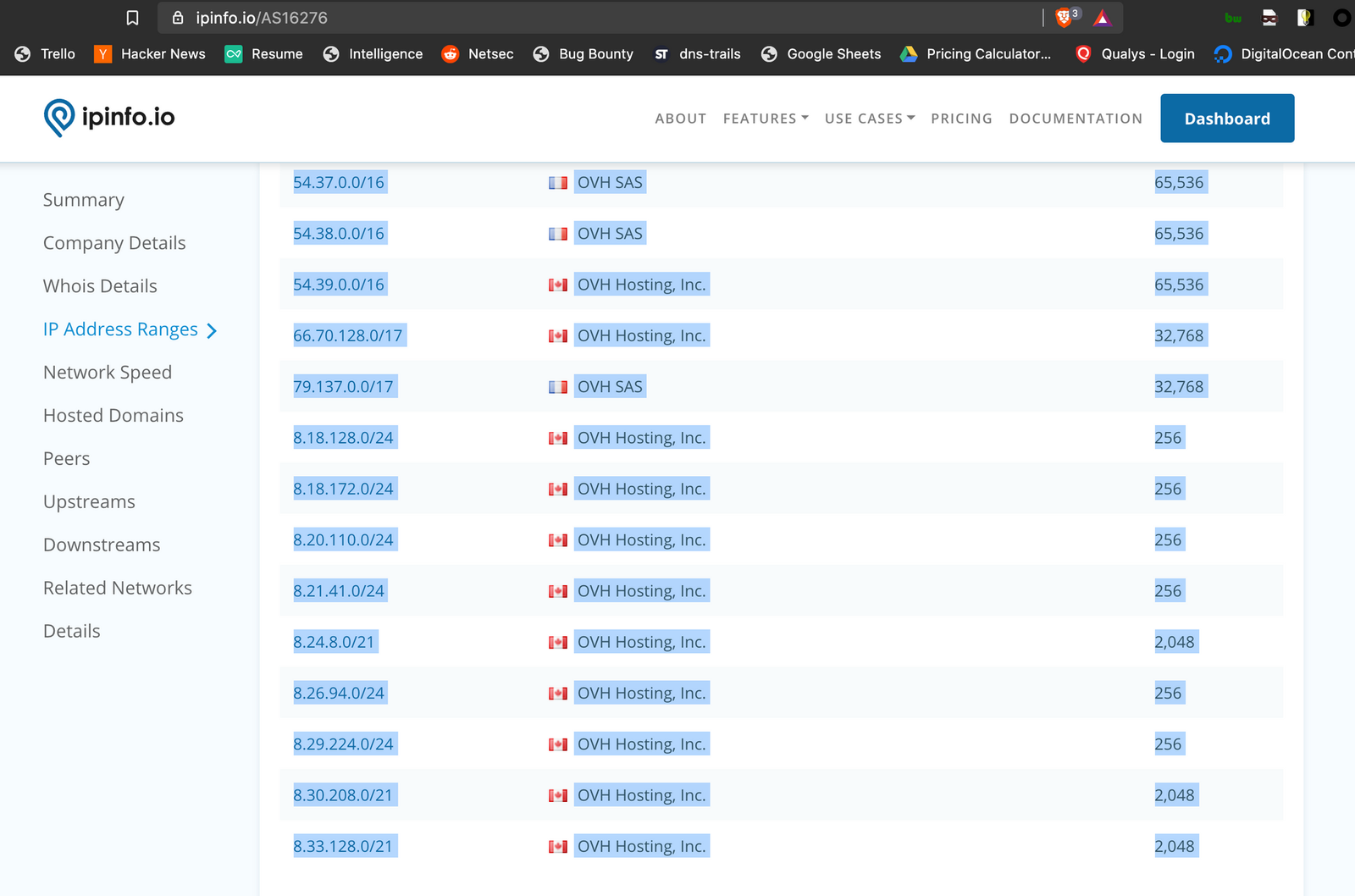

Copying the full ASN netblock list from ipinfo.io into a file

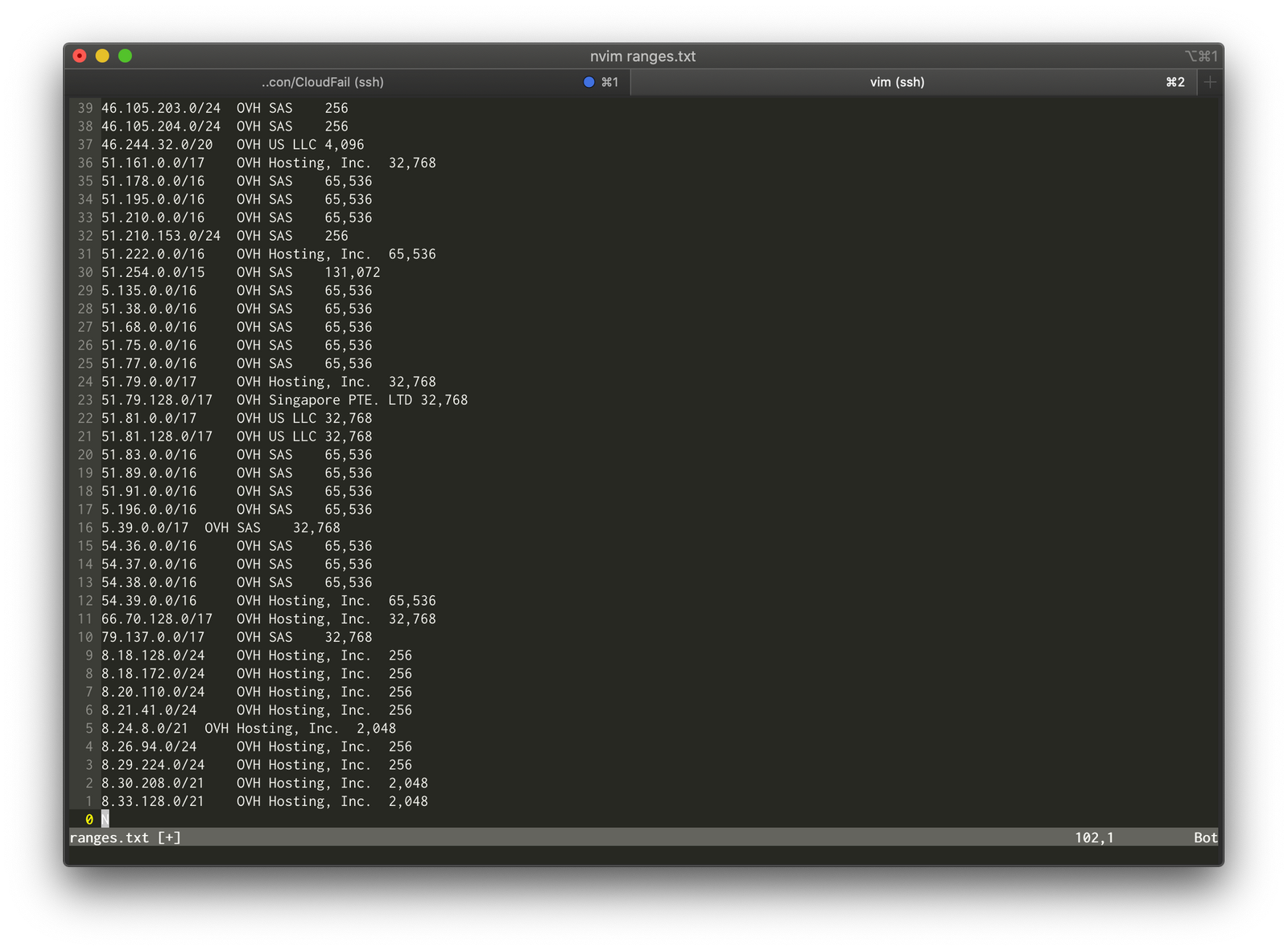

ASN netblock list pasted into a local text file

cat ranges.txt| awk '{ print $1 }' | grep "\." | tee -a source.txt

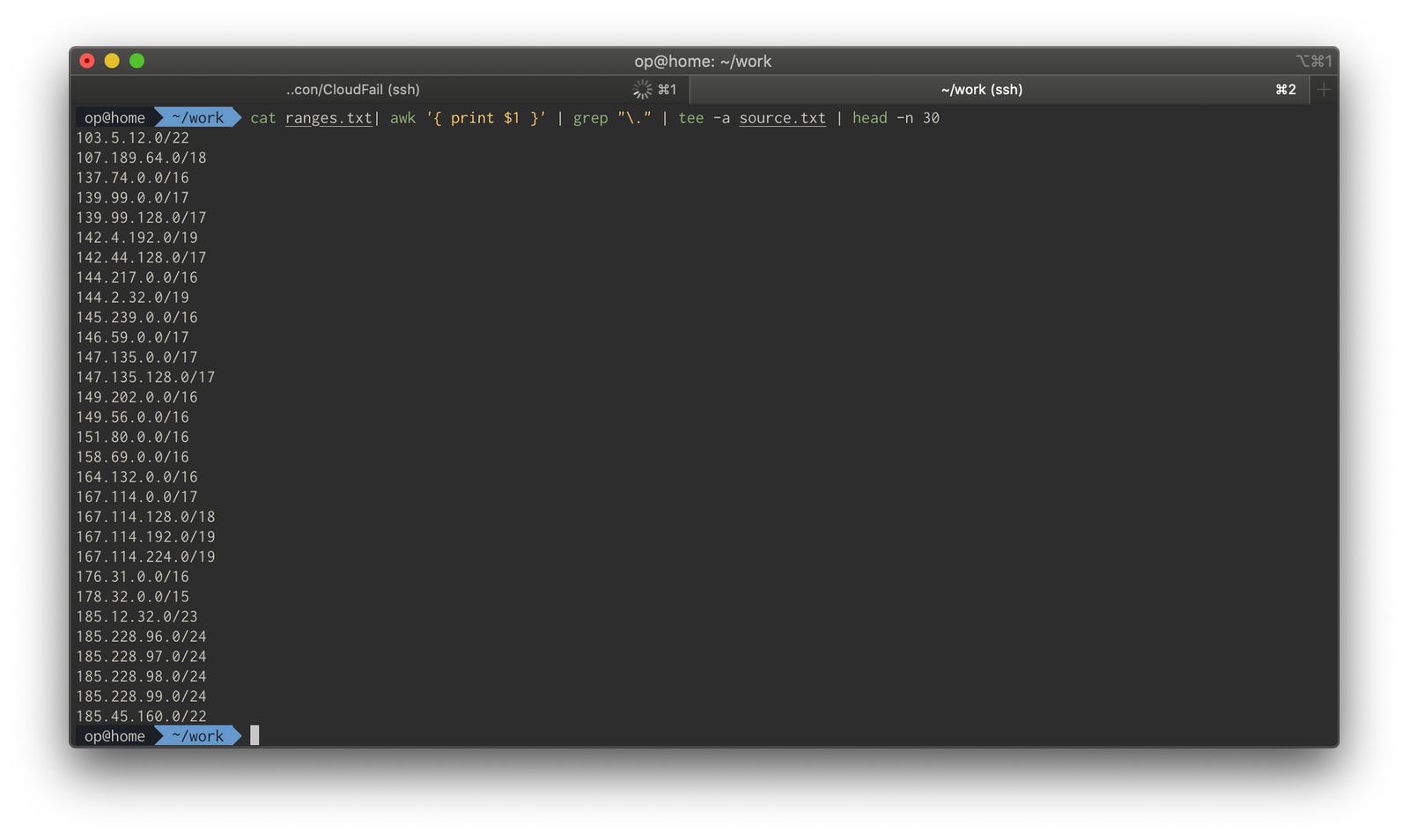

Terminal output filtering the ranges file down to netblock entries

Bulk range retrieval from cloud providers uses easyasn.xyz:

curl -s https://easyasn.xyz/companies/amazon/ranges.txt | grep -v ":"

The final reverse lookup loops through ranges:

for range in $(cat source.txt); do crobat -r $range | jq -c -C '' | grep "0x00sec.org"; done | tee -a results.txt

Cycle discovered assets back through the previous steps until you think you've gotten good coverage.

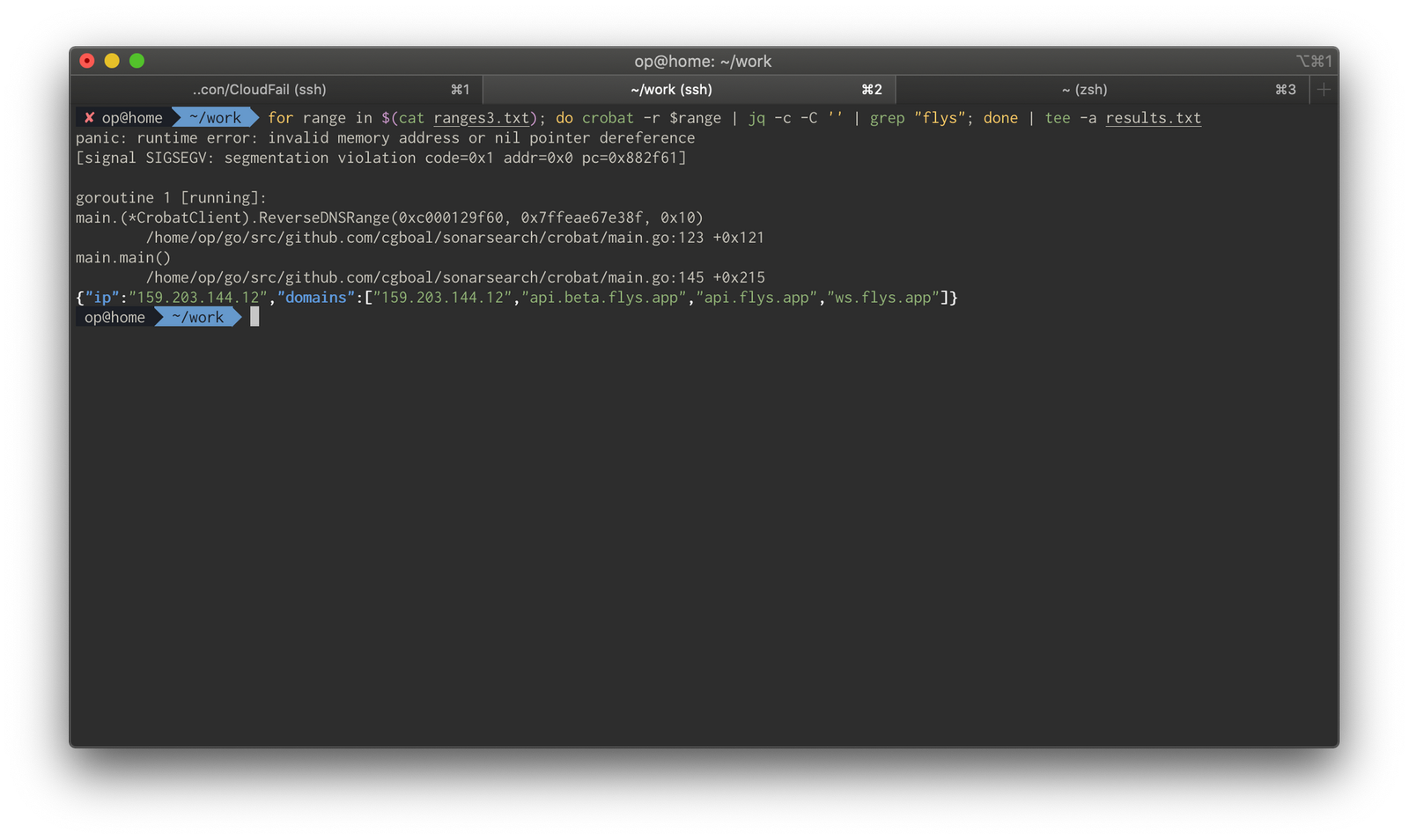

Terminal output of the Crobat reverse lookup loop matching the target domain

CloudFail (Automagic Python)

CloudFail provides automated source identification:

git clone https://github.com/m0rtem/CloudFail.git
cd CloudFail

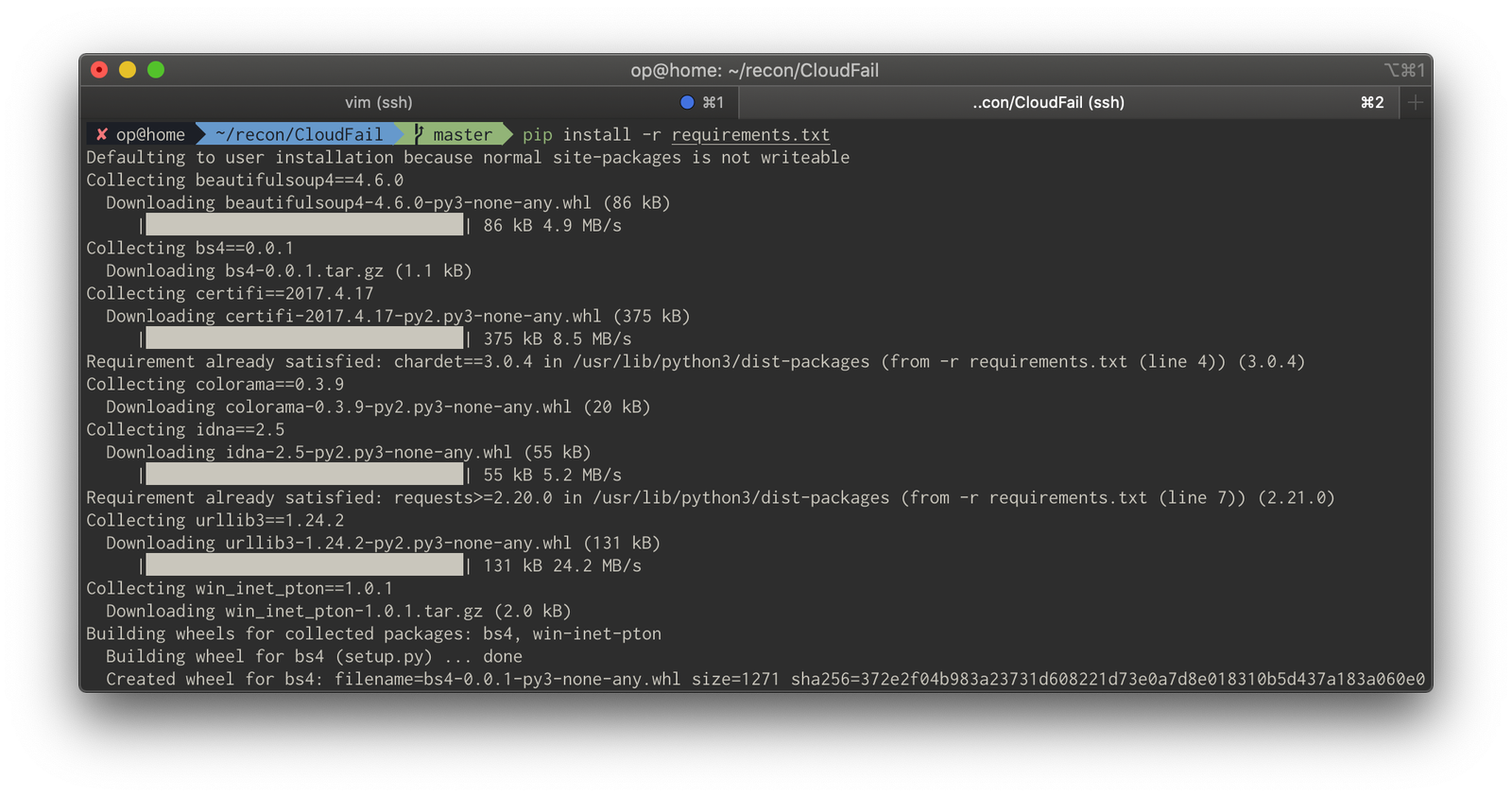

pip install -r requirements.txt
python3 cloudfail.py -t 0x00sec.org

It works sometimes, sometimes it doesn't, but it definitely makes for a good pentest money shot.

CloudFail terminal output enumerating historical IPs

CloudFail terminal output performing a subdomain scan

CloudFail terminal output revealing the origin server

Mitigation

Defense recommendations for blue teamers emphasize whitelisting WAF upstream traffic and restricting management access. Don't rely on WAFs to mitigate really bad vulnerabilities — they should be treated as a last line of defense, with priority given to fixing vulnerabilities in code itself.

IPInfo.io

ipinfo.io is a useful tool across reconnaissance workflows, along with the related tool host.io.

Conclusion

These techniques essentially come down to pulling OSINT and chucking it at a wall to see what sticks — similar methodologies apply to unmasking onion domains and other obscured assets.
